At our Stonehaven plant, we specialise in designing, building, and refurbishing heat exchangers for industries and applications across the board. From initial concept to final testing, we deliver complete solutions that meet top quality standards.
Discover our operations process and expertise today.
Manufactured & Repaired To Spec
Heat exchangers can be manufactured and repaired in accordance with PD5500, BS EN 13445 and ASME VIII Division 1 and 2. Repairs to ASME vessels can also be carried out to National Board "R" stamp, on and off site.
Design, Build, Refurbish, Test...
We have the provision in-house at our state-of-the-art plant in Stonehaven — just south of Aberdeen — to carry out all steps of the process including design, build, rebuild, refurbish, test and re-testing of heat exchangers for all applications.
Full Exotic Material Capabilities
Within our facility we have a designated clean area specifically for mechanical build and testing of exotic material equipment.
CNC, Welding, Rolling & Pressing
The fabrication shop capabilities include both CNC waterjet/oxy fuel profiling machines, pressing and rolling machines, welding capabilities for ferrous and non-ferrous materials in various techniques.
Certified To
Operations Process
Our product development philosophy from concept to launch.
Our Service & Offerings
Find out more about heat exchanger solutions from Whittaker.
Design & Testing
We specialize in the in-house thermal and mechanical design of heat exchangers and pressure vessels, adhering to all relevant codes. We also offer comprehensive weld engineering and procedures for both ferrous and non-ferrous materials, including exotic options.

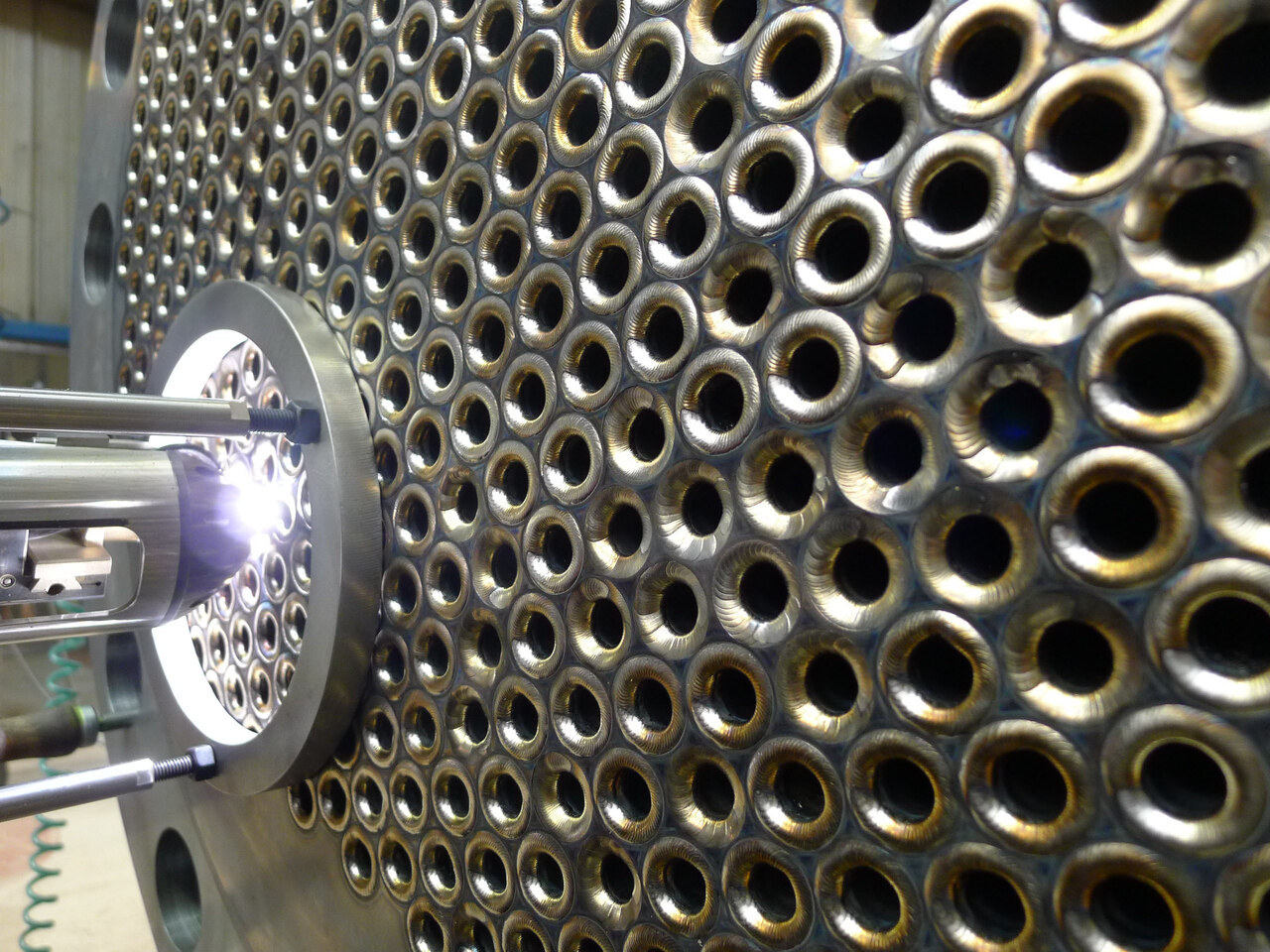

Our capabilities extend to CFD modelling, finite analysis, and PMI testing. Additionally, we conduct laser site surveys to ensure that we can manufacture equipment that meets OEM dimensional specifications. Our welding techniques include tube end orbital welding, manual tube end welding, MMA, TIG, and sub-arc welding.
Manufacture & Refurbishment

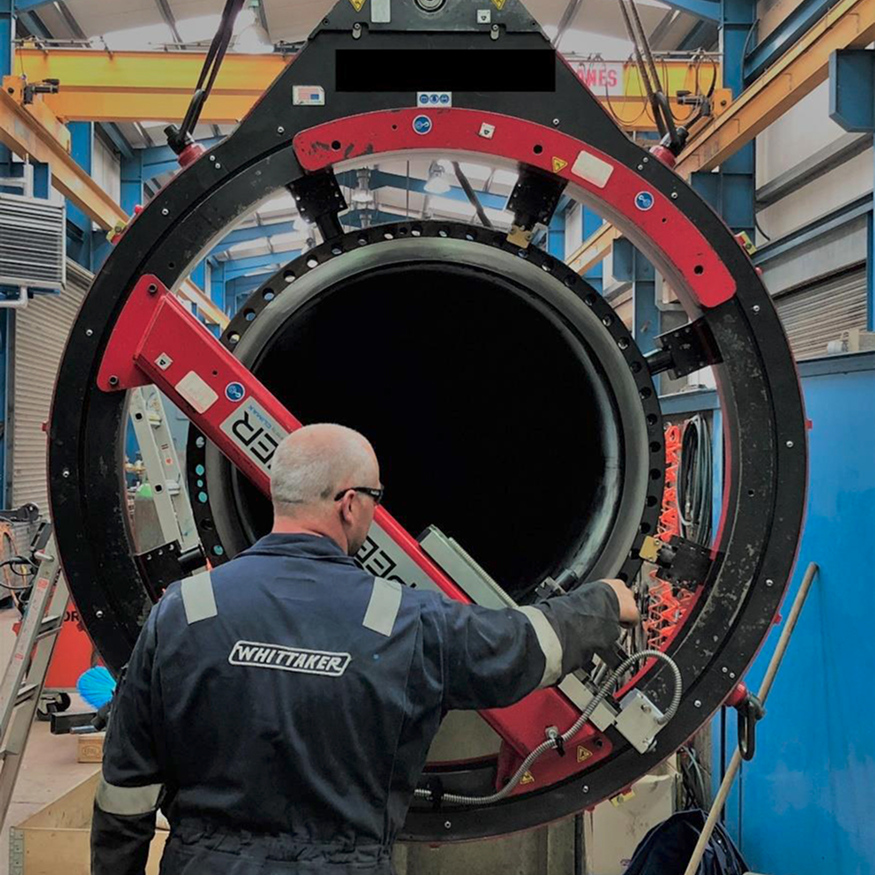

We offer on-site machining of flange faces both onshore and offshore, performed by our multi-skilled technicians who hold MJI bolt tensioning and torquing qualifications, as well as rigging certifications at Levels 1 and 3.
Our team conducts bolting calculations in accordance with ASME PCC1 2013 standards and provides gasket redesign services. Additionally, our team specialize in tube plugging for heat exchangers, along with repair, refurbishment, and re-tubing services.
Our Expertise
Whittaker Engineering Ltd have been welding a wide range of materials since 1983.
Whittakers Heat Exchanger Expertise
We offer service support for the following types of heat exchangers.
- Shell and tube heat exchangers
- Motor Coolers
- Lube Oil Coolers
- Brown fintube - Hairpin coolers
- Plate heat exchangers
- Aluminium plate exchangers
- Plate fin heat exchangers
- Waste heat recovery units
Whittakers Material Expertise
We specialise in the following materials.
- Aluminium grades 5083-6082
- Stainless steels grades 304-316-321
- Duplex and Super Duplex
- 6Mo UNS S31254
- High Yield carbon steel such as EN 10025-S690
- Titanium
- We have Europe's only induction heating-based, water-backed weld procedure - qualified to DNV and Lloyds class rules.
- We are certified to ISO 3834 at Comprehensive level and 1090- Execution Class 3
- We have carried out advanced numerical simulations of welding processes.
- We do stress and fracture mechanics analysis of welded structures, using finite element techniques
- We use advanced processes such as Pulse orbital TIG and Synergic MIG, we use advanced testing methods such as CTOD fracture mechanics
- We are Corporate members of The Welding Institute (TWI) and are members of the Heat Transfer Research Institute
Enquire
Interested in Whittaker Engineering Heat Exchanger offerings? Contact us today.
Case Studies
Work that demonstrates our capabilities both on-site and offshore

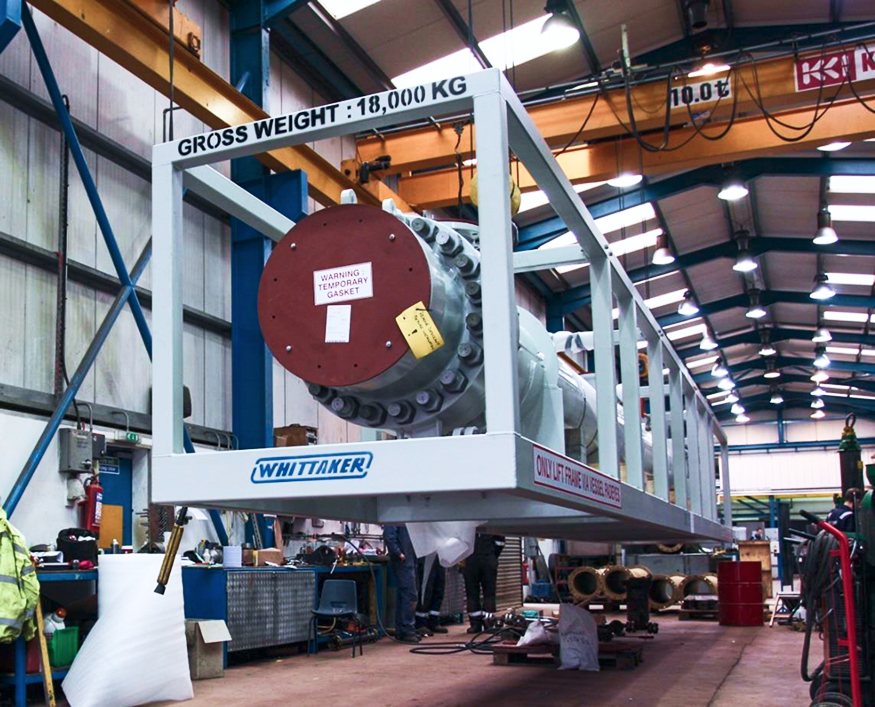

Complete Heat Exchanger designed and built by Whittaker to PD5500 standards for a major client in West Africa.
In addition, at the client's request, Whittaker manufactured the transport frame to DNV 2.7-1 standards. Whittaker successfully carried out the initial laser survey and final fitting of this unit offshore.
Whittaker capabilities include Heat Exchanger flange machining both offshore/on-site or within our factory facilities.
